Torso Phantom

The Torso phantom provides a schematic representation of the human thorax. It includes major organs (heart, lungs, liver, stomach), blood vessels, bones, and soft tissues. The main feature of this phantom is that it supports dynamic physiological motion simulation, enabling testing and benchmarking of acquisition methods sensitive to respiratory and cardiac motion.

Basic Usage

Static Anatomy (No Motion)

Generate a 2D slice at a specific anatomical location:

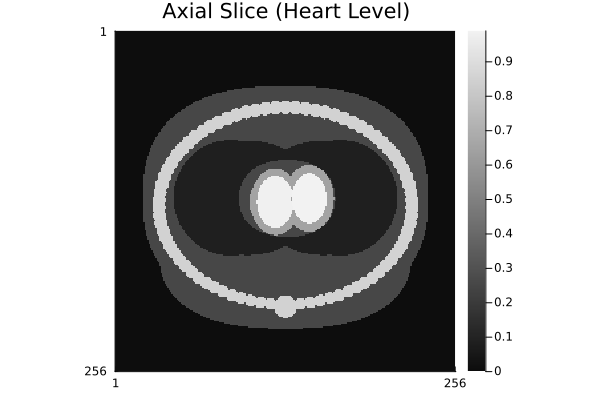

# Axial slice through the heart
phantom_axial = create_torso_phantom(256, 256, :axial; slice_position=0.0)
jim(phantom_axial; title="Axial Slice (Heart Level)")

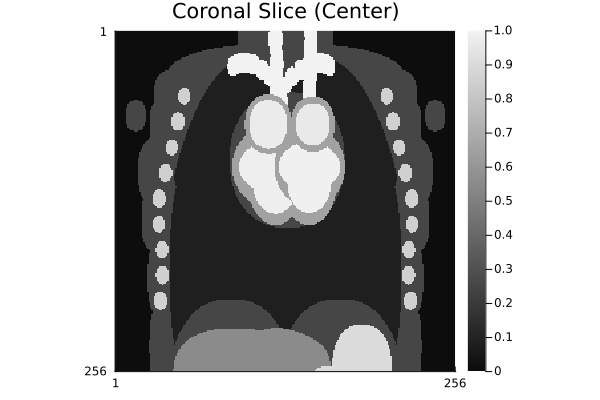

# Coronal slice showing front-to-back view
phantom_coronal = create_torso_phantom(256, 256, :coronal; slice_position=0.0)
jim(phantom_coronal; title="Coronal Slice (Center)", yflip=false)

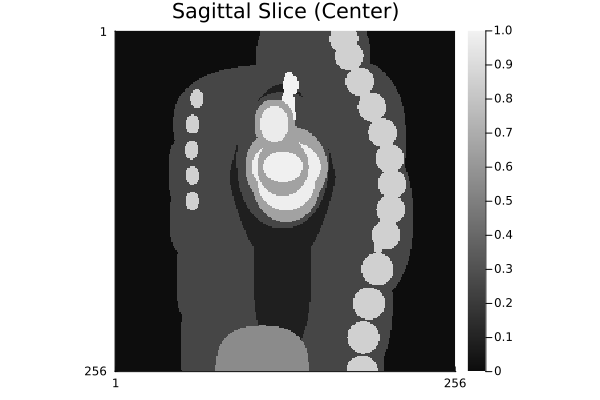

# Sagittal slice showing left-right view
phantom_sagittal = create_torso_phantom(256, 256, :sagittal; slice_position=0.0)
jim(phantom_sagittal; title="Sagittal Slice (Center)", yflip=false)

Spatial Slicing GIFs

Generate GIFs showing anatomical variation through the entire organ:

using FileIO, ImageIO, ImageMagick

# Create 3D torso for slicing
phantom_3d = create_torso_phantom(128, 128, 128)
nx, ny, nz = size(phantom_3d)

# Axial slices GIF
frames_axial = zeros(UInt8, nx, ny, nz)
max_val = maximum(abs.(phantom_3d))

for i in 1:nz
    slice = abs.(phantom_3d[:, :, i])'
    frames_axial[:, :, i] = map(x -> UInt8(round(clamp(x / max_val, 0, 1) * 255)), slice)
end

save("torso_axial_slices.gif", frames_axial, fps=10)

# Coronal slices GIF
frames_coronal = zeros(UInt8, nx, nz, ny)
for i in 1:ny
    slice = reverse(abs.(phantom_3d[:, i, :])', dims=1) # flip vertically for correct orientation
    frames_coronal[:, :, i] = map(x -> UInt8(round(clamp(x / max_val, 0, 1) * 255)), slice)
end

save("torso_coronal_slices.gif", frames_coronal, fps=10)

# Sagittal slices GIF
frames_sagittal = zeros(UInt8, ny, nz, nx)
for i in 1:nx
    slice = reverse(abs.(phantom_3d[i, :, :])', dims=1) # flip vertically for correct orientation
    frames_sagittal[:, :, i] = map(x -> UInt8(round(clamp(x / max_val, 0, 1) * 255)), slice)
end

save("torso_sagittal_slices.gif", frames_sagittal, fps=10)

Tissue Customization

You can easy overwrite intensities of one or more organs while leaving the rest unchanged. Note that default intensities are chosen for high-contrast visuals and are not meant to represent specific physical parameters (like T1 or T2).

# Create custom tissue intensities
# Start with default and override specific tissues
base_tissues = TissueIntensities()
custom_tissues = TissueIntensities(
    lung=0.10,          # Override lung
    heart=base_tissues.heart,
    vessels_blood=base_tissues.vessels_blood,
    bones=base_tissues.bones,
    liver=base_tissues.liver,
    stomach=base_tissues.stomach,
    body=0.30           # Override body
    # cardiac chambers use their own defaults in the creator if not specified or separate
)
# Alternatively, use the constructor with specific kwargs if supported,
# or just define the ones you care about if creating a full struct:
custom_tissues_2 = TissueIntensities(
    lung=0.3,
    heart=0.8,
    vessels_blood=1.0,
    bones=0.1,
    liver=0.5,
    stomach=0.9,
    body=0.2,
    lv_blood=1.0, rv_blood=1.0, la_blood=0.9, ra_blood=0.9
)

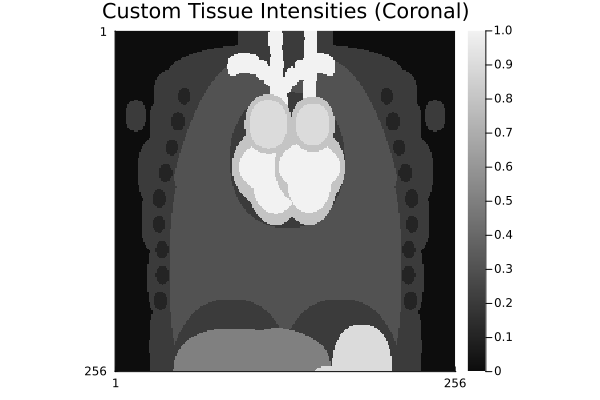

phantom_custom = create_torso_phantom(256, 256, :coronal; ti=custom_tissues_2)
jim(phantom_custom; title="Custom Tissue Intensities (Coronal)", yflip=false)

Tissue Masking

Extract individual organs or tissue types:

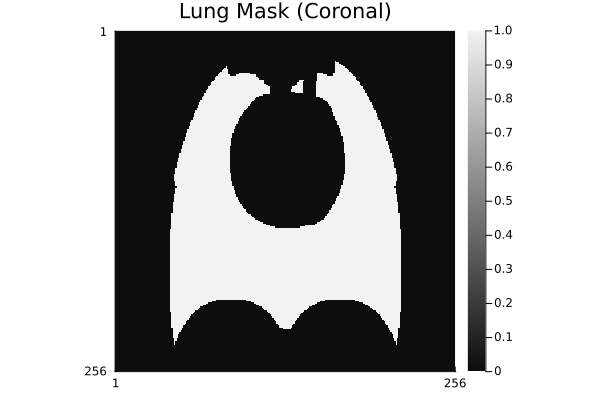

# Create mask for lungs only
lung_mask = create_torso_phantom(256, 256, :coronal; ti=TissueMask(lung=true))
jim(lung_mask; title="Lung Mask (Coronal)", yflip=false)

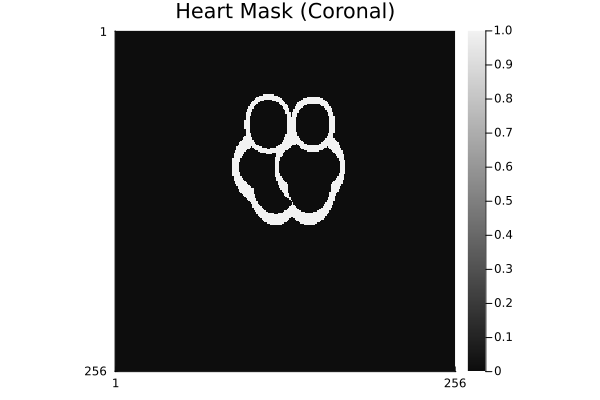

# Create mask for heart chambers
heart_mask = create_torso_phantom(256, 256, :coronal; ti=TissueMask(heart=true))
jim(heart_mask; title="Heart Mask (Coronal)", yflip=false)

Physiological Signal Integration

The Torso phantom supports dynamic simulation of respiratory and cardiac motion via input signals specifying lung volumes and heart chamber volumes over time. This allows testing of motion-compensated reconstruction methods and acquisition strategies that are sensitive to physiological motion. This package includes utility functions to generate parametrized realistic respiratory and cardiac signals, which can be directly fed into the phantom generation process, but you can also use custom signals from real measurements or other sources.

Respiratory Motion

The lungs expand and contract during breathing, changing the positions and volumes of surrounding structures.

Respiratory Physiology Model

The respiratory model simulates breathing mechanics based on the following principles:

• Realistic lung volume range: Humans typically breathe with tidal volumes of 0.5-1.0 L (quiet breathing) to 2-3 L (deep breathing). The total lung capacity is ~6 L. The phantom uses a nominal range of 1.2-6.0 L, capturing from minimal to maximal inspiration.
• Lung volume mechanics: As the lungs expand, the diaphragm moves downward and the chest expands laterally. In the anterior-posterior view (coronal plane), this expansion is most visible. The phantom modulates both the size and position of lung structures based on the input volume signal.
• Signal timing: Healthy adults breathe at rates of 12-20 breaths per minute at rest. During imaging, subjects are typically coached to breathe regularly, often at slower rates (8-15 breaths/min) to minimize motion artifacts.
• Validation: The phantom's volume-to-geometry mapping is designed to be accurate within physiologically realistic bounds. Validation against the input respiratory signals confirms that measured phantom volumes match the prescribed input, within expected ranges for the numerical simulation.

Using Respiratory Signals

generate_respiratory_signal generates a realistic respiratory signal. This creates a physiologically plausible breathing pattern with:

• Sinusoidal base waveform
• Asymmetric inspiration/expiration
• Amplitude modulation (breathing depth variation)

Parameters:

• length of the signal in seconds
• frames per second (temporal resolution)
• respiratory rate in breaths per minute
• physiology: Optional struct of RespiratoryPhysiology type to specify additional physiological parameters like tidal volume range, breath timing variability, and amplitude modulation characteristics.

Output:

• time vector
• lung volume in liters over time

duration = 10.0  # seconds
fs = 24.0  # frames per second
rr = 15.0  # respiratory rate in breaths per minute

t, resp_liters = generate_respiratory_signal(duration, fs, rr)

# Create 4D phantom with respiratory motion
phantom_4d_resp = create_torso_phantom(128, 128, 128;
    fov=(35.0, 35.0, 35.0),
    respiratory_signal=resp_liters)

println("4D phantom shape: $(size(phantom_4d_resp))")
println("Respiratory signal range: $(round(minimum(resp_liters), digits=2)) - $(round(maximum(resp_liters), digits=2)) L")

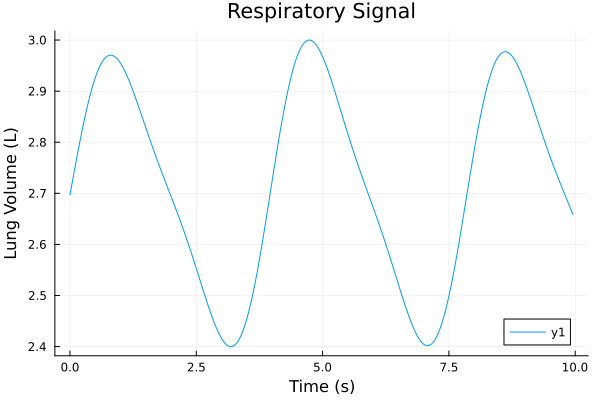

plot(t, resp_liters, xlabel="Time (s)", ylabel="Lung Volume (L)", title="Respiratory Signal")

4D phantom shape: (128, 128, 128, 240)
Respiratory signal range: 2.4 - 3.0 L

Generate a temporal GIF showing how the coronal slice changes during the respiratory cycle:

using FileIO

# Extract center coronal slice and animate over time
mid_y = cld(128, 2)
nt = size(phantom_4d_resp, 4)
fs_actual = nt / duration

frames_coronal_temporal = zeros(UInt8, 128, 128, nt)
max_val = maximum(abs.(phantom_4d_resp))

for i in 1:nt
    slice = reverse(abs.(phantom_4d_resp[:, mid_y, :, i])', dims=1) # flip vertically for correct orientation
    frames_coronal_temporal[:, :, i] = map(x -> UInt8(round(clamp(x / max_val, 0, 1) * 255)), slice)
end

save("torso_respiratory_motion.gif", frames_coronal_temporal, fps=24)

The GIF shows the lungs expanding and contracting, and the heart and liver shifting position as the diaphragm moves during breathing.

Cardiac Motion

The heart undergoes complex motion during the cardiac cycle, with the four chambers changing volumes and positions. The phantom simulates this by modulating the size and position of the heart structures based on input cardiac signals specifying chamber volumes over time.

Cardiac Physiology Model

The cardiac motion model follows the physiological cardiac cycle:

• Chamber volumes: The four cardiac chambers (left ventricle, right ventricle, left atrium, right atrium) change volumes throughout the heartbeat. Typical values at rest:
  • Left ventricle: ~120 mL at end-diastole (maximum filling), ~40-50 mL at end-systole (maximum contraction)
  • Right ventricle: ~100-130 mL at end-diastole, ~30-40 mL at end-systole
  • Atria: ~50-70 mL each during diastole, contracts during atrial kick
• Cardiac cycle timing: At a heart rate of 72 bpm (1.2 Hz), each heartbeat lasts approximately 833 ms, divided into:
  • Atrial contraction (P-wave): ~100 ms
  • Isovolumetric contraction: ~50 ms
  • Ventricular ejection (T-wave): ~300 ms
  • Isovolumetric relaxation: ~80 ms
  • Ventricular filling: ~300 ms
• Atrial kick: The atria contract near the end of ventricular diastole, adding ~20-30% to ventricular filling. This is critical for cardiac output.
• Validation: The phantom's chamber volumes follow the typical cardiac pressure-volume relationships and timing sequences. Validation confirms that measured phantom volumes match input cardiac signals within physiological ranges, confirming realistic motion patterns.

Using Cardiac Signals

generate_cardiac_signals creates realistic cardiac volume signals for the four chambers based on specified heart rate and duration.

Arguments:

• length of the signal in seconds (should allow for multiple heartbeats)
• frames per second (temporal resolution)
• beats per minute
• physiology: Optional struct of CardiacPhysiology type to specify additional parameters like stroke volume, ejection fraction, atrial contribution, and timing characteristics.

Output:

• t: time vector
• cardiac_volumes: NamedTuple with fields lv, rv, la, ra containing volume signals in mL for each chamber.

# Generate cardiac signals for four heart chambers
using GeometricMedicalPhantoms: generate_cardiac_signals

# Parameters:
# - duration: 10 seconds (allows multiple heartbeats)
# - fs: 24 Hz
# - heart_rate: 72 bpm (typical resting heart rate)
duration_cardiac = 10.0  # seconds
fs_cardiac = 24.0  # Hz
heart_rate = 72.0  # beats per minute

# Generate realistic chamber volumes
t_cardiac, cardiac_volumes = generate_cardiac_signals(duration_cardiac, fs_cardiac, heart_rate)

# cardiac_volumes is a NamedTuple with fields: lv, rv, la, ra (volumes in mL)
println("Cardiac signal shape: $(size(t_cardiac))")
println("Left atrium (LA) volume range: $(round(minimum(cardiac_volumes.la), digits=1)) - $(round(maximum(cardiac_volumes.la), digits=1)) mL")
println("Left ventricle (LV) volume range: $(round(minimum(cardiac_volumes.lv), digits=1)) - $(round(maximum(cardiac_volumes.lv), digits=1)) mL")
println("Right atrium (RA) volume range: $(round(minimum(cardiac_volumes.ra), digits=1)) - $(round(maximum(cardiac_volumes.ra), digits=1)) mL")
println("Right ventricle (RV) volume range: $(round(minimum(cardiac_volumes.rv), digits=1)) - $(round(maximum(cardiac_volumes.rv), digits=1)) mL")

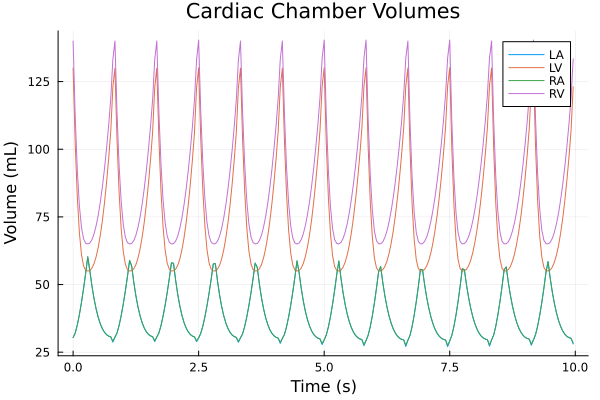

plot(t_cardiac, cardiac_volumes.la, label="LA", xlabel="Time (s)", ylabel="Volume (mL)", title="Cardiac Chamber Volumes")
plot!(t_cardiac, cardiac_volumes.lv, label="LV")
plot!(t_cardiac, cardiac_volumes.ra, label="RA")
plot!(t_cardiac, cardiac_volumes.rv, label="RV")

Cardiac signal shape: (240,)
Left atrium (LA) volume range: 27.1 - 60.3 mL
Left ventricle (LV) volume range: 55.0 - 130.1 mL
Right atrium (RA) volume range: 27.5 - 60.3 mL
Right ventricle (RV) volume range: 65.0 - 140.3 mL

Create a 4D phantom with cardiac motion:

phantom_4d_cardiac = create_torso_phantom(128, 128, 128;
    fov=(35.0, 35.0, 35.0),
    cardiac_volumes=cardiac_volumes)

println("4D cardiac phantom shape: $(size(phantom_4d_cardiac))")

4D cardiac phantom shape: (128, 128, 128, 240)

Combined Respiratory and Cardiac Motion

Real imaging scenarios include both respiratory and cardiac motion simultaneously:

# Generate both signals
phantom_4d_combined = create_torso_phantom(128, 128, 128;
    fov=(35.0, 35.0, 35.0),
    respiratory_signal=resp_liters,
    cardiac_volumes=cardiac_volumes)

println("Combined 4D phantom shape: $(size(phantom_4d_combined))")

Combined 4D phantom shape: (128, 128, 128, 240)

Visualize the combined motion in a temporal GIF:

using FileIO

# Extract center coronal slice with both respiratory and cardiac motion
mid_y_combined = cld(128, 2)
nt_combined = size(phantom_4d_combined, 4)

frames_combined = zeros(UInt8, 128, 128, nt_combined)
max_val_combined = maximum(abs.(phantom_4d_combined))

for i in 1:nt_combined
    slice = reverse(abs.(phantom_4d_combined[:, mid_y_combined, :, i])', dims=1) # flip vertically for correct orientation
    frames_combined[:, :, i] = map(x -> UInt8(round(clamp(x / max_val_combined, 0, 1) * 255)), slice)
end

save("torso_cardiorespiratory_motion.gif", frames_combined, fps=24)

Validation Methodology

The phantom's physiological accuracy is validated by measuring the actual organ volumes in the generated images and comparing them to the input signals. The validation process includes:

1. Volume measurement: Use image processing techniques to segment the lungs and heart chambers in the generated phantom images by intensity, counting the voxels assigned to each organ type, and calculate their volumes based on the specified field of view (FOV) and resolution.
2. Signal comparison: Compare the measured volumes over time to the input respiratory and cardiac signals. This involves calculating relative errors and correlation metrics to quantify how closely the phantom's motion matches the prescribed physiological patterns.

Expected error bounds

Discretization errors and interpolation introduce small differences between input volumes and measured volumes.

• Testing confirms that within the volume range of typical breathing (2.4-3.0 L), the measured lung volumes closely track the input signal (correlation > 0.999, and relative error < 1.5%).
• Over the full validated range (1.2-6.0 L), the error remains within 5.5% with only a slight decrease in correlation (correlation > 0.998).
• For cardiac volumes, similar validation shows that the measured chamber volumes closely follow the input signals with relative errors typically below 5% across the cardiac cycle.

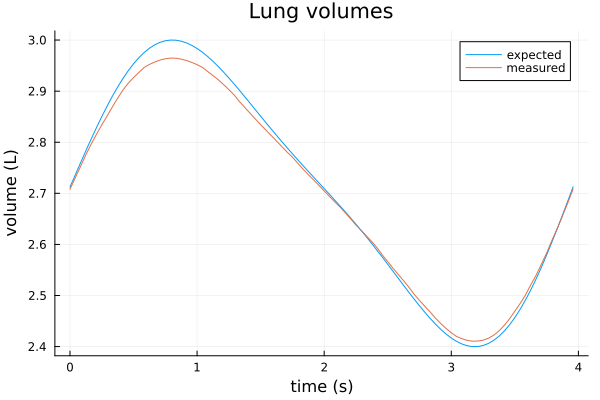

Example validation code for lung volume:

using GeometricMedicalPhantoms: calculate_volume

duration, fs, rr = 4.0, 24.0, 15.0
t, resp = generate_respiratory_signal(duration, fs, rr)

# Create phantom with moderate resolution for faster computation
nx, ny, nz = 128, 128, 128
fov = (30, 30, 30)
phantom = create_torso_phantom(nx, ny, nz; respiratory_signal=resp)

lung_vol_L = zeros(Float64, length(resp))

# Calculate lung volumes using utility function that counts voxels assigned to lung tissue type and converts to liters based on voxel size
for m in 1:length(resp)
    frame = phantom[:, :, :, m]
    lung_vol_L[m] = calculate_volume(frame, (0.075f0, 0.11f0), fov)
end

plot(t, resp, label="expected", title="Lung volumes")
plot!(t,lung_vol_L, label="measured", xlabel="time (s)", ylabel="volume (L)")
