Geometry Primitives

GeometricMedicalPhantoms is built on a foundation of geometric primitives: simple mathematical shapes that can be combined to create complex phantoms. Understanding these primitives is essential for building custom phantoms.

Overview

All phantoms are ultimately composed of collections of geometric primitives that are rendered at each voxel. The available primitives are:

Ellipsoid: General 3D elliptical shape (axis-aligned)
SuperEllipsoid: Generalized ellipsoid with adjustable curvature
RotatedEllipsoid: Ellipsoid with arbitrary 3D rotation
CylinderX, CylinderY, CylinderZ: Cylinders aligned with coordinate axes

Each primitive is defined by a set of parameters (center, size, intensity) and a mathematical function that determines whether a point in space belongs to the shape.

Ellipsoid

An ellipsoid is a generalization of a sphere to three dimensions with potentially different radii in each direction.

Mathematical Definition

An ellipsoid centered at $(c_x, c_y, c_z)$ with radii $(r_x, r_y, r_z)$ is defined by:

\[\left(\frac{x - c_x}{r_x}\right)^2 + \left(\frac{y - c_y}{r_y}\right)^2 + \left(\frac{z - c_z}{r_z}\right)^2 \leq 1\]

A point is inside the ellipsoid if the left side is ≤ 1, and outside otherwise.

Parameters

# Create a simple ellipsoid
# Ellipsoid(cx, cy, cz, rx, ry, rz, intensity)
ell = Ellipsoid(0.0, 0.0, 0.0, 1.0, 0.5, 0.8, 1.0)

println("Ellipsoid: $ell")

Ellipsoid: Ellipsoid{Float64, Float64}(0.0, 0.0, 0.0, 1.0, 0.5, 0.8, 1.0)

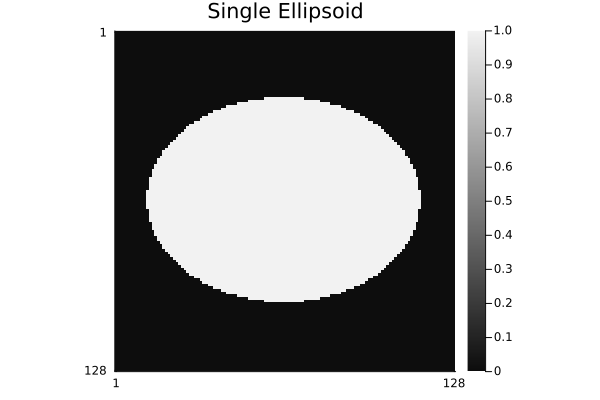

Visual Example

# Draw a phantom containing a single ellipsoid
primitives = [
    Ellipsoid(0.0, 0.0, 0.0, 0.8, 0.6, 0.5, 1.0)
]

# Create simple 2D drawing function for visualization
phantom_2d = zeros(Float32, 128, 128)
for i in 1:128
    for j in 1:128
        x = (i - 64) / 64  # Map to [-1, 1]
        y = (j - 64) / 64
        z = 0.0  # Center z-slice

        for prim in primitives
            # Simple point-in-ellipsoid test
            dx, dy, dz = x - prim.cx, y - prim.cy, z - prim.cz
            if (dx/prim.rx)^2 + (dy/prim.ry)^2 + (dz/prim.rz)^2 <= 1.0
                phantom_2d[i, j] = prim.intensity
            end
        end
    end
end

jim(phantom_2d; title="Single Ellipsoid")

SuperEllipsoid

A SuperEllipsoid generalizes the ellipsoid by introducing adjustable exponents. This allows creating shapes ranging from perfect spheres to rounded boxes.

Mathematical Definition

A SuperEllipsoid centered at $(c_x, c_y, c_z)$ with radii $(r_x, r_y, r_z)$ and exponents $(e_x, e_y, e_z)$ is defined by:

\[\left|\frac{x - c_x}{r_x}\right|^{e_x} + \left|\frac{y - c_y}{r_y}\right|^{e_y} + \left|\frac{z - c_z}{r_z}\right|^{e_z} \leq 1\]

When all exponents equal 2, this reduces to the standard ellipsoid. As exponents increase, the shape becomes more "boxy"; as they decrease toward 1, it becomes more "pointy."

Parameters

# SuperEllipsoid with adjustable curvature
# SuperEllipsoid(cx, cy, cz, rx, ry, rz, (ex, ey, ez), intensity)
super_ell = SuperEllipsoid(0.0, 0.0, 0.0, 1.0, 0.8, 0.6, (2.0, 2.0, 2.0), 0.8)

println("SuperEllipsoid: $super_ell")

SuperEllipsoid: SuperEllipsoid{Float64, Float64}(0.0, 0.0, 0.0, 1.0, 0.8, 0.6, (2.0, 2.0, 2.0), 0.8)

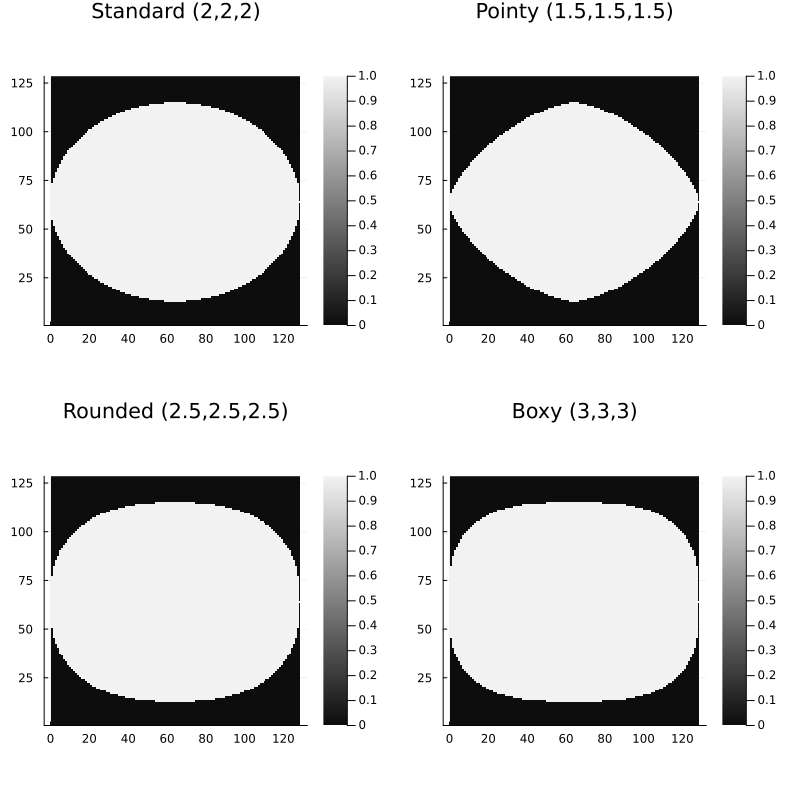

Effect of Exponents

# Create phantoms with different exponents to show shape variation
fig_superell = plot(layout=(2,2), size=(800,800))

exponents_list = [(2.0, 2.0, 2.0), (1.5, 1.5, 1.5), (2.5, 2.5, 2.5), (3.0, 3.0, 3.0)]
exponent_labels = ["Standard (2,2,2)", "Pointy (1.5,1.5,1.5)", "Rounded (2.5,2.5,2.5)", "Boxy (3,3,3)"]

for (idx, (exp, label)) in enumerate(zip(exponents_list, exponent_labels))
    phantom_super = zeros(Float32, 128, 128)
    for i in 1:128
        for j in 1:128
            x = (i - 64) / 64
            y = (j - 64) / 64
            z = 0.0

            # SuperEllipsoid point test
            dx, dy, dz = x, y, z
            if abs(dx/1.0)^exp[1] + abs(dy/0.8)^exp[2] + abs(dz/0.6)^exp[3] <= 1.0
                phantom_super[i, j] = 1.0
            end
        end
    end

    # Plot in subplot
    heatmap!(fig_superell[idx], phantom_super', title=label, aspect_ratio=:equal, color=:grays)
end

RotatedEllipsoid

A RotatedEllipsoid allows arbitrary 3D rotation of an ellipsoid using Euler angles.

Mathematical Definition

A RotatedEllipsoid is defined by:

Standard ellipsoid equation after coordinate transformation
Rotation matrix $R$ applied using Z-Y-X Euler angles (in radians)

The condition becomes: $(R^{-1}(P - C))^T D (R^{-1}(P - C)) \leq 1$

where $C$ is the center, $D$ is the diagonal matrix of $(1/r_x^2, 1/r_y^2, 1/r_z^2)$, and $R$ is the Z-Y-X rotation.

Parameters

# RotatedEllipsoid with 3D orientation
# RotatedEllipsoid(cx, cy, cz, rx, ry, rz, phi, theta, psi, intensity)
rot_ell = RotatedEllipsoid(0.0, 0.0, 0.0, 0.8, 0.4, 0.3, 0.3, 0.4, 0.2, 0.7)

println("RotatedEllipsoid: $rot_ell")

RotatedEllipsoid: RotatedEllipsoid{Float64, Float64}(0.0, 0.0, 0.0, 0.8, 0.4, 0.3, 0.3, 0.4, 0.2, 0.7, :axial)

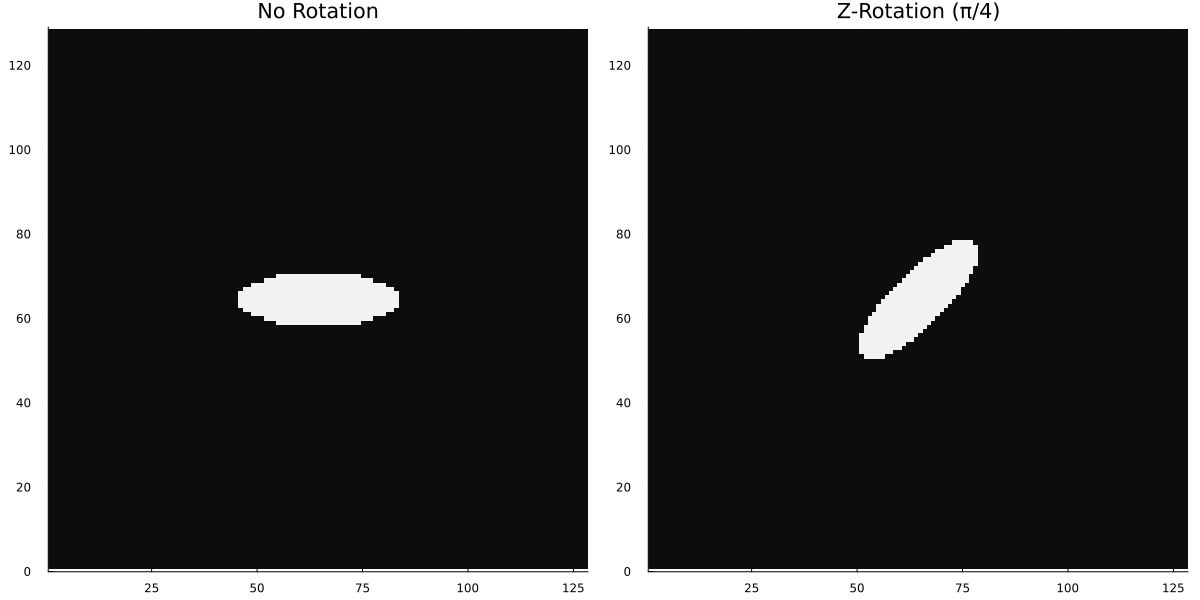

Rotation Angles

Rotations are specified using Euler angles in Z-Y-X order (phi, theta, psi).

# Demonstrate rotation angles
using GeometricMedicalPhantoms

# Create axes
nx, ny, nz = 128, 128, 128
ax = collect(range(-1.0, 1.0, length=nx))

# Helper function to create and draw an ellipsoid
function draw_ellipsoid(phi, theta, psi, title_str)
    phantom = zeros(Float32, nx, ny, nz)
    # Using internal MaskingIntensityValue wrapper
    ellipsoid = GeometricMedicalPhantoms.RotatedEllipsoid(
        0.0, 0.0, 0.0,  # center
        0.3, 0.1, 0.3,  # radii
        phi, theta, psi,  # rotations
        GeometricMedicalPhantoms.MaskingIntensityValue(1.0f0)  # intensity
    )
    GeometricMedicalPhantoms.draw!(phantom, ax, ax, ax, ellipsoid)
    slice = phantom[:, :, 64]
    return heatmap(slice', title=title_str, aspect_ratio=:equal, color=:grays, legend=false)
end

# Create visualizations
p1 = draw_ellipsoid(0.0, 0.0, 0.0, "No Rotation")
p2 = draw_ellipsoid(π/4, 0.0, 0.0, "Z-Rotation (π/4)")

fig_rotations = plot(p1, p2, layout=(1,2), size=(1200,600))

Cylinders

Three varieties of cylinders, aligned with the coordinate axes:

CylinderZ (Aligned with Z-axis)

Extends along the Z-axis:

\[\sqrt{(x - c_x)^2 + (y - c_y)^2} \leq r \text{ and } |z - c_z| \leq \frac{\text{height}}{2}\]

# CylinderZ(cx, cy, cz, r, height, intensity)
cyl_z = CylinderZ(0.0, 0.0, 0.0, 0.3, 1.0, 0.9)

println("CylinderZ: $cyl_z")

CylinderZ: CylinderZ{Float64, Float64}(0.0, 0.0, 0.0, 0.3, 1.0, 0.9)

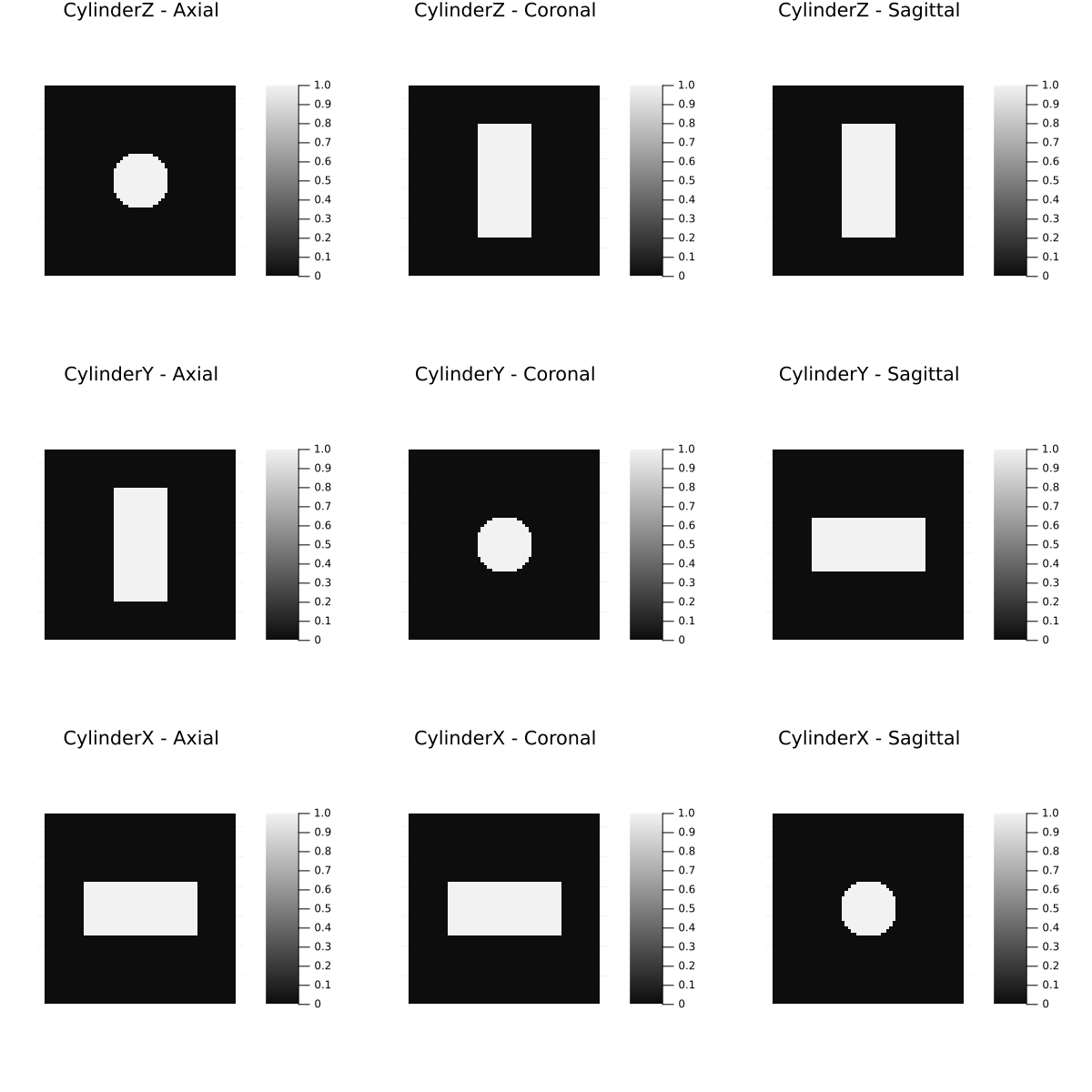

# Create 3D phantom volumes with each cylinder type
nx, ny, nz = 64, 64, 64
fov = 2.0
ax_x = collect(range(-fov/2, fov/2, length=nx))
ax_y = collect(range(-fov/2, fov/2, length=ny))
ax_z = collect(range(-fov/2, fov/2, length=nz))

# CylinderZ (extends along Z-axis)
cyl_z = CylinderZ(0.0, 0.0, 0.0, 0.3, 1.2, 1.0)
phantom_z = zeros(Float32, nx, ny, nz)
draw!(phantom_z, ax_x, ax_y, ax_z, cyl_z)

# CylinderY (extends along Y-axis)
cyl_y = CylinderY(0.0, 0.0, 0.0, 0.3, 1.2, 1.0)
phantom_y = zeros(Float32, nx, ny, nz)
draw!(phantom_y, ax_x, ax_y, ax_z, cyl_y)

# CylinderX (extends along X-axis)
cyl_x = CylinderX(0.0, 0.0, 0.0, 0.3, 1.2, 1.0)
phantom_x = zeros(Float32, nx, ny, nz)
draw!(phantom_x, ax_x, ax_y, ax_z, cyl_x)

# Create 3x3 layout: rows are cylinder types, columns are planes
fig = plot(layout=(3,3), size=(1200,1200))

# CylinderZ slices
heatmap!(fig[1,1], phantom_z[:, :, div(nz,2)]', title="CylinderZ - Axial", aspect_ratio=:equal, color=:grays, legend=false, axis=false)
heatmap!(fig[1,2], phantom_z[:, div(ny,2), :]', title="CylinderZ - Coronal", aspect_ratio=:equal, color=:grays, legend=false, axis=false)
heatmap!(fig[1,3], phantom_z[div(nx,2), :, :]', title="CylinderZ - Sagittal", aspect_ratio=:equal, color=:grays, legend=false, axis=false)

# CylinderY slices
heatmap!(fig[2,1], phantom_y[:, :, div(nz,2)]', title="CylinderY - Axial", aspect_ratio=:equal, color=:grays, legend=false, axis=false)
heatmap!(fig[2,2], phantom_y[:, div(ny,2), :]', title="CylinderY - Coronal", aspect_ratio=:equal, color=:grays, legend=false, axis=false)
heatmap!(fig[2,3], phantom_y[div(nx,2), :, :]', title="CylinderY - Sagittal", aspect_ratio=:equal, color=:grays, legend=false, axis=false)

# CylinderX slices
heatmap!(fig[3,1], phantom_x[:, :, div(nz,2)]', title="CylinderX - Axial", aspect_ratio=:equal, color=:grays, legend=false, axis=false)
heatmap!(fig[3,2], phantom_x[:, div(ny,2), :]', title="CylinderX - Coronal", aspect_ratio=:equal, color=:grays, legend=false, axis=false)
heatmap!(fig[3,3], phantom_x[div(nx,2), :, :]', title="CylinderX - Sagittal", aspect_ratio=:equal, color=:grays, legend=false, axis=false)

Implementing New Shapes

To add a new geometric primitive to GeometricMedicalPhantoms, you need to implement the following:

1. Define the Shape Structure

Create a struct that inherits from GeometricMedicalPhantoms.Shape:

struct MyCustomShape{T,T2} <: GeometricMedicalPhantoms.Shape
    # Position parameters
    cx::T
    cy::T
    cz::T

    # Shape-specific parameters
    param1::T
    param2::T

    # Intensity
    intensity::T2
end

2. Implement Rotation Functions

For 2D slicing support, implement coordinate transformations:

# Coronal view: swap y and z
GeometricMedicalPhantoms.rotate_coronal(shape::MyCustomShape) =
    MyCustomShape(shape.cx, shape.cz, shape.cy, shape.param1, shape.param2, shape.intensity)

# Sagittal view: swap x with z, then y with x
GeometricMedicalPhantoms.rotate_sagittal(shape::MyCustomShape) =
    MyCustomShape(shape.cy, shape.cz, shape.cx, shape.param1, shape.param2, shape.intensity)

3. Implement the draw! Function

This is the core rendering function. It should:

Calculate bounding box for efficiency
Iterate only over relevant voxels
Test if each point is inside the shape
Call draw_pixel! to set the intensity

function GeometricMedicalPhantoms.draw!(
    phantom::AbstractArray{T,3},
    ax_x::AbstractVector,
    ax_y::AbstractVector,
    ax_z::AbstractVector,
    shape::MyCustomShape
) where T
    # Extract parameters
    cx, cy, cz = shape.cx, shape.cy, shape.cz
    param1, param2 = shape.param1, shape.param2
    intensity = shape.intensity

    # Calculate bounding box to avoid checking all voxels
    # Use idx_bounds from utils.jl
    ix_min, ix_max = GeometricMedicalPhantoms.idx_bounds(ax_x, cx, radius_x)
    iy_min, iy_max = GeometricMedicalPhantoms.idx_bounds(ax_y, cy, radius_y)
    iz_min, iz_max = GeometricMedicalPhantoms.idx_bounds(ax_z, cz, radius_z)

    # Early exit if shape is outside phantom
    if ix_min == -1 || iy_min == -1 || iz_min == -1
        return
    end

    # Iterate over bounding box
    for iz in iz_min:iz_max, iy in iy_min:iy_max, ix in ix_min:ix_max
        x, y, z = ax_x[ix], ax_y[iy], ax_z[iz]

        # Test if point is inside shape
        # This is shape-specific mathematical condition
        if inside_shape_test(x, y, z, cx, cy, cz, param1, param2)
            # Use draw_pixel! which handles Additive vs Masking modes
            GeometricMedicalPhantoms.draw_pixel!(phantom, intensity, ix, iy, iz)
        end
    end

    return phantom
end

4. Implement 2D Slicing Support (Optional)

For 2D slice support at arbitrary positions:

function GeometricMedicalPhantoms.draw!(
    phantom::AbstractArray{T,2},
    ax_1::AbstractVector,
    ax_2::AbstractVector,
    ax_3_val::Real,  # Fixed coordinate value
    shape::MyCustomShape
) where T
    # Similar to 3D but with fixed coordinate
    # Iterate over 2D grid and test if points at ax_3_val are inside shape
end

5. Add Documentation

Add docstrings explaining:

Mathematical definition of the shape
Parameter meanings
Typical use cases

@doc raw\"""
    MyCustomShape(cx, cy, cz, param1, param2, intensity)

Custom geometric shape for medical phantoms.

The shape is defined by the equation:
``f(x, y, z) \\leq 1``

# Fields
- `cx, cy, cz`: Center position
- `param1`: Description of parameter 1
- `param2`: Description of parameter 2
- `intensity`: Intensity value

# Example
\```julia
shape = MyCustomShape(0.0, 0.0, 0.0, 1.0, 0.5, 0.8)
\```
"""
